CPU	Support Intel® Core™ Ultra Processors (Series 2) ,LGA1851 // Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 // Refer to https://www.asus.com/support/download-center/ for CPU support list. // Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel® B860 Chipset
Memory	4 x DIMM slots, max. 256GB, DDR5 // Support up to 8800+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) // Dual Channel Memory Architecture // DIMM Fit // Supports Intel® Extreme Memory Profile (XMP) memory module // ASUS Enhanced Memory Profile III(AEMPIII) // Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market. // Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x DisplayPort / 1 x HDMI™ port / 1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output // Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. // Supports max. 4K@60Hz as specified in DisplayPort 1.4. // Supports 4K@60Hz as specified in HDMI 2.1. // VGA resolution support depends on processors' or graphic cards' resolution. // While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots	Intel® CoreTM Ultra Processors(Series 2) : 1 x PCIe 5.0 x16 slot // Intel® B860 Chipset : 1 x PCIe 4.0 x4 slot
Storage	Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports : Intel® Core™ Ultra Processors(Series 2) : M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) // Intel® B860 Chipset : M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) / M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) / 4 x SATA 6Gb/s ports // *Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet	1 x Realtek 2.5Gb Ethernet / TUF LANGuard
Wireless & Bluetooth	Wi-Fi 7 // 2x2 Wi-Fi 7 (802.11be) // Supports 2.4/5/6GHz frequency band // Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. // Bluetooth® v5.4 // Wi-Fi features may vary depending on the operating system / For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. / For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details. // Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. //The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB	Rear USB (Total 8 ports) : 1 x USB 20Gbps port (1 x USB Type-C®) / 2 x USB 10Gbps port (2 x Type-A) / 4 x USB 5Gbps ports (4 x Type-A) / 1 x USB 2.0 ports (1x Type-A)// Front USB (Total 5 ports) : 1 x USB 10Gbps connector (supports USB Type-C®) / 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports / 1 x USB 2.0 headers support 2 additional USB 2.0 ports // * USB Type-C® power delivery output: max. 5V/3A
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC : - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking / - Supports up to 24-Bit/192 kHz playback // Audio Features : - Audio Shielding / - Rear optical S/PDIF out port / - Premium audio capacitors / - Dedicated audio PCB layers
Back Panel I/O Ports	1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode) / 2 x USB 10Gbps port (2 x Type-A) / 4 x USB 5Gbps ports (4 x Type-A) / 1 x USB 2.0 port (1 x Type-A) / 1 x DisplayPort / 1 x HDMI™ port / 1 x Wi-Fi Module / 1 x Realtek 2.5Gb Ethernet port / 5 x Audio jacks / 1 x Optical S/PDIF out port
Internal I/O Connectors	Fan and Cooling related : 1 x 4-pin CPU Fan header / 1 x 4-pin CPU OPT Fan header / 1 x 4-pin AIO Pump header / 3 x 4-pin Chassis Fan headers // Power related : 1 x 24-pin Main Power connector / 2 x 8-pin +12V Power connectors // Storage related : 3 x M.2 slots (Key M) / 4 x SATA 6Gb/s ports // USB : 1 x USB 10Gbps connector (supports USB Type-C® ) / 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports / 1 x USB 2.0 header supports 2 additional USB 2.0 ports // Miscellaneous : 3 x Addressable Gen 2 headers / 1 x Clear CMOS header / 1 x Chassis Intrusion header / 1 x Front panel audio header (F_AUDIO) / 1 x 10-1 pin Front System Panel header / 1 x Thunderbolt™ (USB4®) header
Special Features	ASUS TUF PROTECTION : - DIGI+ VRM (- Digital power design with DrMOS) / - ESD Guards/ - TUF LANGuard / - Overvoltage Protection / - SafeSlot / - Stainless-Steel Back I/O // ASUS Q-Design : - M.2 Q-Latch / - PCIe Slot Q-Release / - Q-Antenna / - Q-Dashboard / - Q-DIMM / - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) // ASUS Thermal Solution : - M.2 heatsinks / - VRM heatsink design // ASUS EZ DIY : - CPU Socket lever protector / - ProCool / - Pre-mounted I/O shield / - SafeDIMM // AURA Sync : - Addressable Gen 2 headers
Software Features	ASUS Exclusive Software: Armoury Crate : - AURA Creator / - AURA Sync / - Fan Xpert 2+ / - Power Saving // ASUS DriverHub // ASUS GlideX // TurboV Core // TUF GAMING CPU-Z // DTS Audio Processing // Norton 360 for Gamers (60 Days Free Trial) // WinRAR (40 Days Free Trial) // UEFI BIOS // ASUS EZ DIY : - ASUS CrashFree BIOS 3 / - ASUS EZ Flash / - ASUS UEFI BIOS EZ Mode / - ASUS MyHotkey // NPU Boost
BIOS	2 x 128 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables : 2 x SATA 6Gb/s cables // Miscellaneous : 1 x ASUS WiFi Q-Antenna / 2 x M.2 Rubber Packages / 1 x TUF Gaming sticker / 1 x Screw package for M.2 SSD // Documentation : 1 x Quick start guide
Operating System	Windows 11 (22H2 & later)
Form Factor	mATX Form Factor / 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )

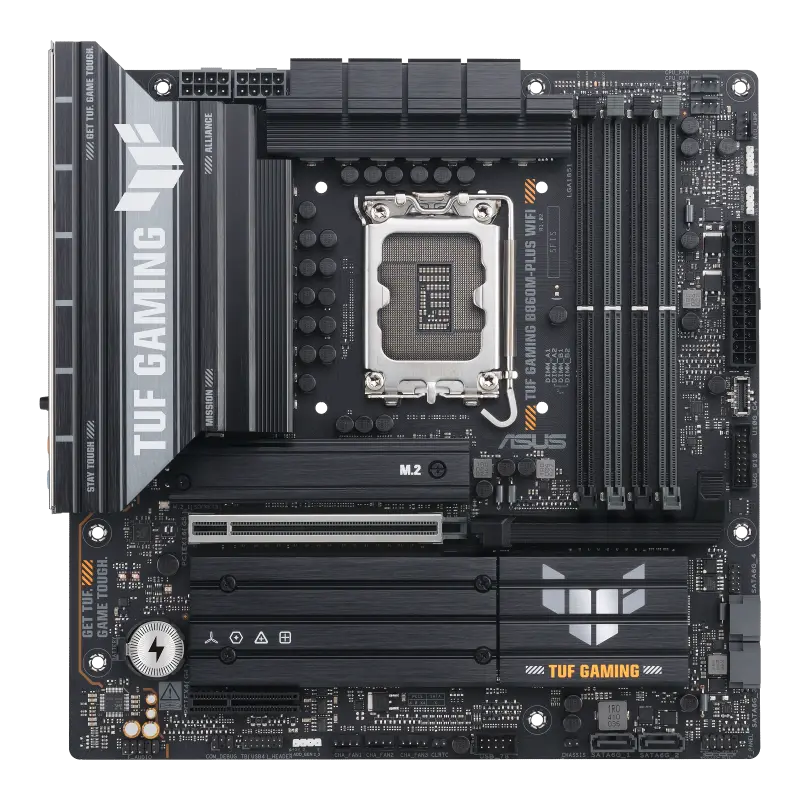

ASUS TUF GAMING B860M-PLUS WIFI PCIE 5.0
