*Brand*	*MSI*

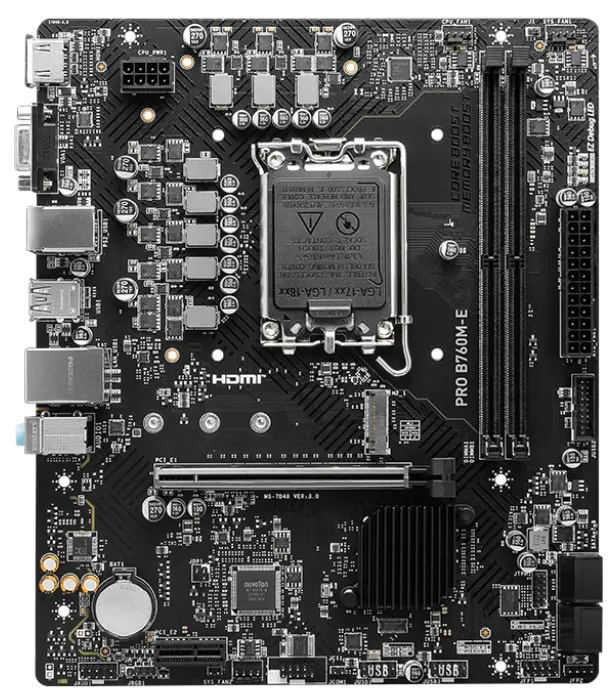

*Model*	*MSI PRO B760M-E*
*Product Number*	*911-7D48-071*
*CPU*	*Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors // LGA 1700*
*Chipset*	*INTEL B760*
*Memory*	*2x DDR5, Maximum Memory Capacity 128GB*
*Memory Frequency*	Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC // Max. overclocking frequency: 1DPC 1R Max speed up to 6400+ MHz • 1DPC 2R Max speed up to 5600+ MHz
*Memory Features*	*Supports Intel® XMP 3.0 OC // Supports Dual-Controller Dual-Channel mode // Supports non-ECC, un-buffered memory*
*Graphics*	*1x HDMI™: Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz // 1x VGA: Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz*
*Graphics Compatibility*	*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.*
*Expansion Slots*	*1x PCI-E x16 slot // 1x PCI-E x1 slot: PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) - PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)*
*Storage (M.2)*	*1x M.2: M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices*
*Storage (SATA)*	*4x SATA 6Gb/s connectors // SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.*
*RAID Support*	*Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices*
*USB*	*4x USB 2.0 (Rear) // 4x USB 2.0 (Front) // 2x USB 5Gbps Type A (Rear) // 2x USB 5Gbps Type A (Front)*
*Audio*	*Realtek® ALC897 Codec - 7.1-Channel High Definition Audio*
*Ethernet*	*Realtek® RTL8111H Gigabit LAN*
*Internal I/O Connectors*	1x Power Connector(ATX_PWR) // 1x Power Connector(CPU_PWR) // 1x CPU Fan // 2x System Fan // 2x Front Panel (JFP) // 1x Chassis Intrusion (JCI) // 1x Front Audio (JAUD) // 1x Com Port (JCOM) // 1x RGB LED connector(JRGB) // 1x TPM pin header(Support TPM 2.0) // 4x USB 2.0 ports // 2x USB 5Gbps Type A ports
*Back Panel I/O Ports*	*HDMI™ // VGA // Keyboard / Mouse // USB 3.2 Gen 1 5Gbps (Type-A) // LAN port // Audio Connectors // USB 2.0 // USB 2.0*
*LED FEATURE*	*4x EZ Debug LED*
*OPERATING SYSTEM*	*Support for Windows® 11 64-bit, Windows® 10 64-bit*
*Form Factor*	*mATX 200x236.16mm*

MSI PRO B760M-E 911-7D48-071 – LGA 1700, DDR5 6400OC, PCIe 4.0, M.2 Slot, 2xUSB 5Gbps, 1Gbps LAN
