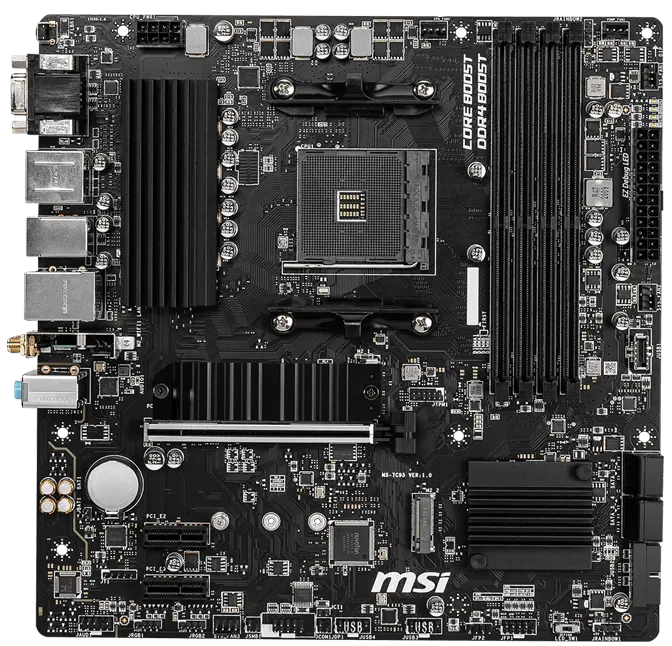

*Brand*	*MSI*
*Model*	*MSI B550M PRO-VDH WIFI*
*Product Number*	*911-7C95-081*
*CPU*	*Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors // AM4*
*Chipset*	*AMD B550 Chipset*
*Memory*	*4x DDR4 memory slots, support up to 128GB*
*Memory Frequency*	Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC // Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE: 1DPC 1R max speed 4400 MHZ - 1DPC 2R max speed 3733 MHZ - 2DPC 1R max speed 3866 MHZ - 2DPC 2R max speed 3466 MHZ
*Memory Features*	*Dual channel memory architecture // Supports non-ECC UDIMM memory // Supports ECC UDIMM memory // Supports un-buffered memory*
*Graphics*	1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1 // 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1 // 1x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1 2 // Support HDCP 1.4 & 2.3 // Maximum shared memory of 16 GB
*Graphics Compatibility*	*Available for the processor with integrated graphics.Graphics // specifications may vary depending on the CPU installed.*
*Expansion Slots*	*1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1 // 2x PCIe 3.0 x1 slots*
*Storage (M.2)*	2x M.2 slots (Key M): M2_1 slot (from AMD Processor) - Supports PCIe 4.0/ 3.0 x4 1 - Supports SATA 6Gb/s - Supports 2242/ 2260/ 2280 storage devices // M2_2 slot (from AMD B550 chipset): Supports PCIe 3.0x4 - Supports 2242/ 2260/ 2280 storage devices
*Storage (SATA)*	*4x SATA 6Gb/s connectors*
*RAID Support*	*Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices // Supports RAID 0 and RAID 1 for M.2 NVMe storage devices*
*USB (CPU)*	*4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel*
*USB (Chipset)*	3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) // 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
*Audio*	*Realtek® ALC892/ALC897 Codec: 7.1-Channel High Definition Audio*
*Ethernet*	*1x Realtek® 8111HN Gigabit LAN controller*
*WIFI & Bluetooth*	*Wi-Fi AC: Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed. // Supports Dual Mode Bluetooth 2.1,2.1+EDR,3.0,4.0,BLE,4.2*
*Internal I/O Connectors*	1x 24-pin ATX main power connector // 1x 8-pin ATX 12V power connector // 4x SATA 6Gb/s connectors // 2x M.2 slots (M-Key) // 1x USB 3.2 Gen 1 5Gbps Type-C port // 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) // 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) // 1x 4-pin CPU fan connector // 1x 4-pin water-pump fan connector // 3x 4-pin system fan connectors // 1x Front panel audio connector // 2x System panel connectors // 1x Serial port connector // 1x Chassis Intrusion connector // 2x 4-pin RGB LED connectors // 2x 3-pin RAINBOW LED connectors // 1xTPM module connector // 1x Clear CMOS jumper
*Back Panel I/O Ports*	*VGA // USB 3.2 Gen 1 5Gbps Type-A // Keyboard / Mouse // LAN // Flash BIOS Button // DisplayPort // HDMI™ // USB 2.0 // USB 3.2 Gen 1 5Gbps Type-A // Wi-Fi Antenna connectors // 3x Audio jacks*
*Form Factor*	*Micro-ATX Form Factor 24.4x24.4cm*

MSI B550M PRO-VDH WIFI 911-7C95-081 – 3xUSB 3.2 Gen 1, AM4, DDR4 4400OC, PCIe 4.0, 2xM.2, Bluetooth, 1GbE LAN

Product Description
