Elite Mid-Range Blueprint: Next-Gen PCIe 5.0 Power Meets High-Speed DDR4 Value

Strike the perfect balance between cutting-edge speed and smart component budgeting with the Gigabyte B760 Gaming X DDR4 GEN5 (9MB76GX45-00-G10) ATX motherboard. Purpose-built to maximize the architectures of Intel® Core™ 14th, 13th, and 12th Generation processors, this full-sized board delivers premium performance without forcing an expensive jump to DDR5 ecosystems. Engineered with an advanced Hybrid 8+1+1 Phases Digital VRM Solution armed with 60A DrMOS stages, it maintains clean, rock-solid power delivery even during intensive multi-core gaming marathons or heavy rendering workflows.

The crown jewel of this specific variant is its forward-facing data pipeline. Unlike standard B760 options, this board introduces a high-bandwidth PCIe 5.0 x16 expansion slot, doubling the structural throughput of legacy lanes to perfectly accommodate next-generation graphics architectures. For system memory, four dual-channel DIMM slots support up to 128GB of high-speed DDR4 RAM, effortlessly scaling up to 5333MHz (O.C.) via XMP profiles. Storage potential remains equally unrestricted with three onboard PCIe 4.0 x4 M.2 slots, ensuring your high-speed NVMe solid-state drives run unthrottled under the coverage of Gigabyte’s integrated M.2 Thermal Guard.

Maintaining peak physical efficiency is simple thanks to the fully covered MOSFET thermal design and Smart Fan 6 technology, which uses multiple internal sensors and hybrid headers to balance absolute silence with aggressive cooling layout demands. The back panel offers comprehensive plug-and-play functionality, including a high-speed Realtek 2.5GbE LAN controller for lag-free gaming pipelines and a native USB 3.2 Gen 2 Type-A port. Complete with Q-Flash Plus for seamless, CPU-less BIOS updates, secure your ultimate performance framework today with local warranty backup at Delta-Computer.net.

Specs:

Brand	Gigabyte
Model	Gigabyte B760 Gaming X DDR4 GEN5
Product Number	9MB76GX45-00-G10
CPU	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors // L3 cache varies with CPU
Chipset	Intel® B760 Express Chipset
Memory	4x DDR DIMM sockets supporting up to 128GB (32GB single DIMM capacity) of system memory
Memory Frequency	Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
Memory Features	Dual channel memory architecture // Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) // Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules // Support for Extreme Memory Profile (XMP) memory modules
Graphics	1x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz // 1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Expansion Slots (CPU)	1x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
Expansion Slots (Chipset)	2x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
Storage	Supports 3x M.2 slots and // 4x SATA 6Gb/s ports
Storage (CPU)	1x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Storage (Chipset)	2x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) // 4x SATA 6Gb/s connectors
RAID Support	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB (Chipset)	1x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header // 1x USB 3.2 Gen 2 Type-A port (red) on the back panel // 1x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support // 4x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) // 1x USB 2.0/1.1 port on the back panel
USB (Chipset+2 USB 2.0 Hubs)	8x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Audio	Realtek® Audio CODEC: High Definition Audio // 2/4/5.1/7.1-channel // Support for S/PDIF Out
Ethernet	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Internal I/O Connectors	1x 24-pin ATX main power connector // 1x 8-pin ATX 12V power connector // 1 x CPU fan header // 1 x CPU fan/water cooling pump header // 3 x system fan headers // 1 x system fan/water cooling pump header // 3 x addressable RGB Gen2 LED strip headers // 1 x RGB LED strip header // 3 x M.2 Socket 3 connectors // 4 x SATA 6Gb/s connectors // 1 x front panel header // 1 x front panel audio header // 1 x S/PDIF Out header // 1 x USB Type-C® header, with USB 3.2 Gen 2 support // 1 x USB 3.2 Gen 1 header // 2 x USB 2.0/1.1 headers // 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) // 1 x serial port header // 1 x Q-Flash Plus button // 1 x reset jumper // 1 x Clear CMOS jumper
Back Panel I/O Ports	1 x USB 3.2 Gen 2 Type-A port (red) // 2 x USB 3.2 Gen 1 ports // 5 x USB 2.0/1.1 ports // 1 x DisplayPort // 1 x HDMI port // 1 x RJ-45 port // 6 x audio jacks
Features	Support for GIGABYTE Control Center (GCC) // Support for Q-Flash // Support for Q-Flash Plus // Support for Smart Backup
Bundled Software	Norton® Internet Security (OEM version)
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection // Temperature detection // Fan speed detection // Water cooling flow rate detection // Fan fail warning // Fan speed control
Operating System	Support for Windows 11 64-bit // Support for Windows 10 64-bit
BIOS	1x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor; 30.5x24.4cm

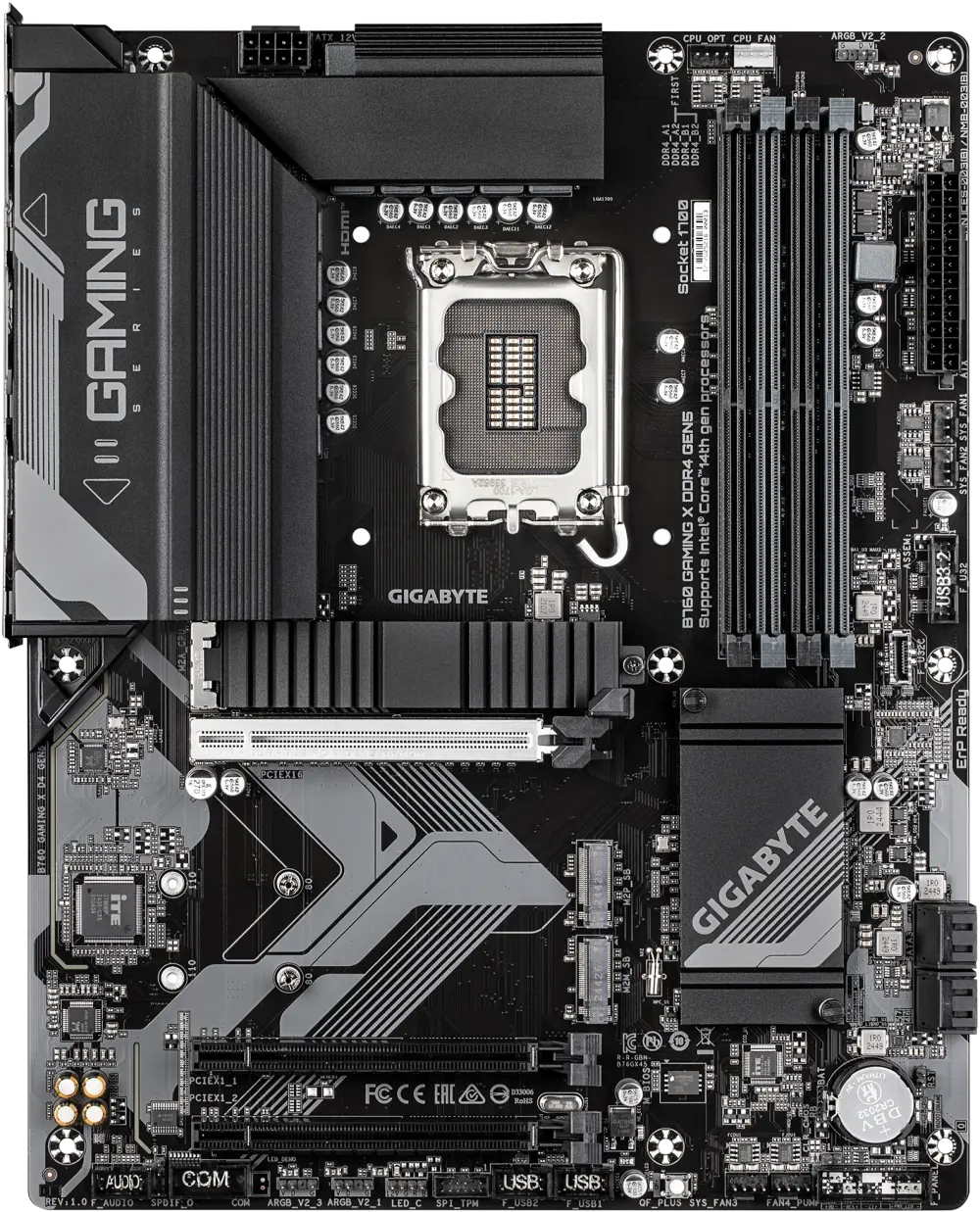

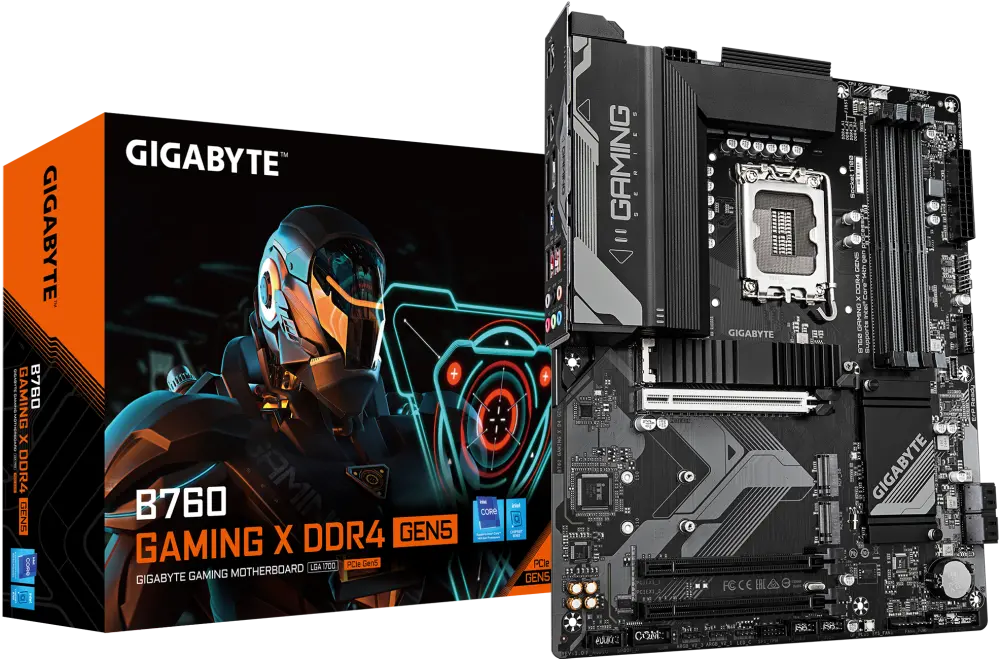

Gigabyte B760 Gaming X DDR4 GEN5 ATX Motherboard
