Brand	Asus
Series	Asus TUF Gaming 850W Gold
Model	90YE00S2-B0NA00
Total Output	850W
ATX Standard	ATX 3.1
Efficiency	80Plus Gold
AC Input Range	100-240Vac
DC Output Voltage	+3.3V +5V +12V -12V +5Vsb
Maximum Load	25A 25A 70.8A 0.8A 3A
Combined Load	130W 130W 850W 9.6W 15W
Fan	Axial-tech fan design
Fan Bearings	Dual ball fan bearings
MTBF	>120,000 hrs @ 40°C
PFC Type	Active PFC
Intel Form Factor	ATX12V
0dB Technology	Supported. The fan shuts off entirely when the PSU is under certain load
Cable Connectors	1x MB 24/20-pin // 2x CPU 4+4-pin // 1x PCI-E 16-pin (both PSU & component side) // 3x PCI-E 8-pin // 5x SATA // 4x PERIPHERAL
Features	Durability // MILITARY-GRADE COMPONENTS // High-Performance Copper Pins // Etched Cables
Protection Features	OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials	ROHS
Package Contents	1x Power Cord // 1x Motherboard Power Cable (610mm) // 2x CPU Cable (650mm) // 1x PCI-E Gen 5.1 16-pin Cable (675mm) // 1x PCI-E (16-pin to 8-pin-8-pin) Cable (675mm) // 1x PCI-E 1-to-1 Cable (675mm) // 1x SATA 1-to-2 Cable (400+120mm) // 1x SATA 1-to-3 Cable (400+120+120mm) // 1x Peripheral 1-to-4 Cable (400+150+150+150mm) // 3x TUF Gaming Cable Tie // 1x User Manual
Weight	2.38kg
Dimensions	150x150x86mm

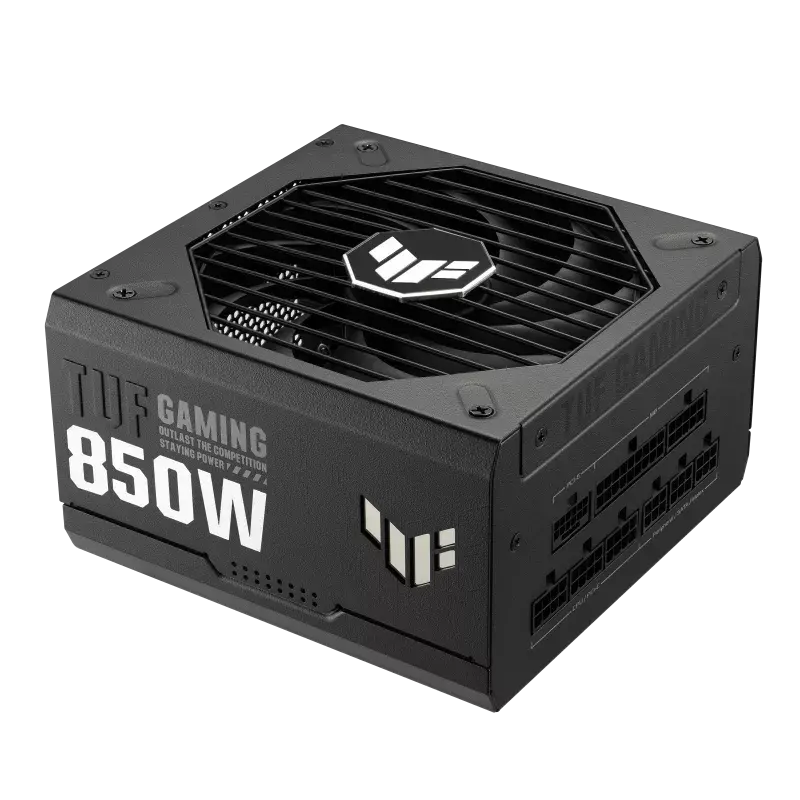

ASUS TUF Gaming 850W 80+ Gold – ATX 3.1, Fully Modular, PCIe 5.0, Etched Cables, High Performance Copper Pins
