CPU	Supports Intel® Core™ Ultra Processors (Series 2), LGA1851 / Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 / Refer to https://www.asus.com/support/download-center/ for CPU support list. / Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel® Z890 Chipset
Memory	4 x DIMM slots, max. 256GB, DDR5 / Support up to 8666+MT/s (OC),Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) / Dual channel memory architecture / DIMM Fit / Supports Intel® Extreme Memory Profile (XMP) memory module / ASUS Enhanced Memory Profile III(AEMPIII) / Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market. / Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x DisplayPort / 1 x HDMITM port / 1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort and Thunderbolt™ video outputs // Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. // Supports max. 4K@60Hz as specified in DisplayPort 1.4. // Supports 4K@60Hz as specified in HDMI 2.1. // In ThunderboltTM4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. // In DP alt mode, supports up to UHBR20. // VGA resolution support depends on processors' or graphic cards' resolution. // While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots	Intel® Core™ Ultra Processors (Series 2) : 1 x PCIe 5.0 x16 slot // Intel® Z890 Chipset : 2 x PCIe 4.0 x16 slots (support x4 mode) / 1x PCIe 4.0 x16 slot (supports x1 mode)
Storage	Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports* / Intel® CoreTM Processors (14th & 13th & 12th Gen) : M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) // Intel® B760 Chipset : M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) / 4x SATA 6Gb/s ports // * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet	1 x Realtek 2.5Gb Ethernet / ASUS LANGuard
Wireless & Bluetooth	Wi-Fi 7 : 2x2 Wi-Fi 7 (802.11be) / Supports 2.4/5/6GHz frequency band / Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. // Bluetooth® v5.4 : Wi-Fi features may vary depending on the operating system / For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. / For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details. / Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. / The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB	Rear USB (Total 8 ports) : 1x Thunderbolt™ 4 port (1 x USB Type-C®) / 1x USB 10Gbps port (1 x Type-A) / 2x USB 5Gbps ports (2 x Type-A) / 4x USB 2.0 ports (4 x Type-A) // Front USB (Total 9 ports) : 1x USB 10Gbps connector (supports USB Type-C®) / 2x USB 5Gbps headers support 4 additional USB 5Gbps ports / 2x USB 2.0 headers support 4 additional USB 2.0 ports // USB Type-C® power delivery output: max. 5V/3A // USB_E1 port, USB_E2 port, USB_E3 port and USB_E 4 port share the bandwidth. // USB_E5 port, USB_E6 port and USB_E7 port share the bandwidth
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC : - Supports: Jack-detection, / Multi-streaming, Front Panel Jack-retasking / - Supports up to 24-Bit/192 kHz playback // Audio Features : - Audio Shielding / - Premium audio capacitors / - Dedicated audio PCB layers //A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output
Back Panel I/O Ports	1x Thunderbolt™ 4 USB Type-C® port / 1x USB 10Gbps port (1x Type-A) / 2x USB 5Gbps ports (2x Type-A) / 4x USB 2.0 ports (4x Type-A) / 1x DisplayPort / 1x HDMITM port / 1 x Wi-Fi module / 1x Realtek 2.5Gb Ethernet port / 3x Audio jacks / 1x BIOS FlashBack™ button
Internal I/O Connectors	Fan and Cooling related : 1 x 4-pin CPU Fan header / 1 x 4-pin CPU OPT Fan header / 1 x 4-pin AIO Pump header / 4 x 4-pin Chassis Fan headers // Power related : 1 x 24-pin Main Power connector / 2 x 8-pin +12V CPU Power connector // Storage related : 4x M.2 slots (Key M) / 4x SATA 6Gb/s ports // USB : 1x USB 10Gbps connector (supports USB Type-C®) / 2x USB 5Gbps headers support 4 additional USB 5Gbps ports / 2x USB 2.0 headers support 4 additional USB 2.0 ports // Miscellaneous : 3x Addressable Gen2 headers / 1x Aura RGB header / 1x Clear CMOS header / 1x COM Port header / 1x Front Panel Audio header (F_AUDIO) / 1x S/PDIF Out header / 1x SPI TPM header (14-1pin) / 1x 10-1 pin Front Panel System header / 1x Thunderbolt™ (USB4®) header
Special Features	ASUS 5X PROTECTION III : - DIGI+ VRM (- Digital power design with DrMOS) / - LANGuard / - Overvoltage Protection / - SafeSlot / - Stainless-Steel Back I/O // ASUS Q-Design : - M.2 Q-Latch / - PCIe Slot Q-Release / - Q-Antenna / - Q-Dashboard / - Q-DIMM / - Q-LED Core / - Q-Slot // ASUS Thermal Solution : - M.2 heatsink / - VRM heatsink design // ASUS EZ DIY : - BIOS FlashBack™ button / - BIOS FlashBack™ LED / - ProCool / - Pre-mounted I/O shield // Aura Sync : - Aura RGB header / - Addressable Gen2 headers
Software Features	ASUS Exclusive Software / Armoury Crate : - Aura Creator / - Aura Sync / - Fan Xpert 4 (with AI Cooling II) / - Power Saving // ASUS AI Advisor // ASUS DriverHub // ASUS GlideX // ASUS CPU-Z // TurboV Core // Norton 360 Deluxe (60 Days Free Trial) // WinRAR (40 Days Free Trial) // UEFI BIOS // ASUS EZ DIY : - ASUS CrashFree BIOS 3 / - ASUS EZ Flash / - ASUS UEFI BIOS EZ Mode / - ASUS MyHotkey // NPU Boost (Intel K-series Processors only)
BIOS	256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables : 2 x SATA 6Gb/s cables // Miscellaneous : 1 x ASUS WiFi Q-Antenna / 1 x M.2 rubber package / 2 x Screw packages for M.2 SSD // Documentation : 1 x Quick start guide
Operating System	Windows 11 (22H2 & later)
Form Factor	ATX Form Factor / 12 inch x 9.6inch ( 30.5 cm x 24.4 cm )

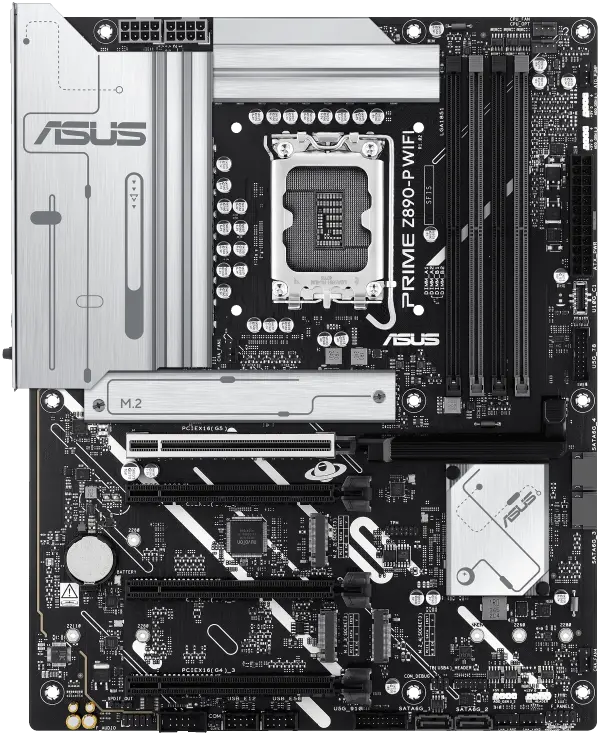

ASUS PRIME Z890-P WIFI PCIE 5.0 WIFI 7

Product Description
