Brand	ASUS

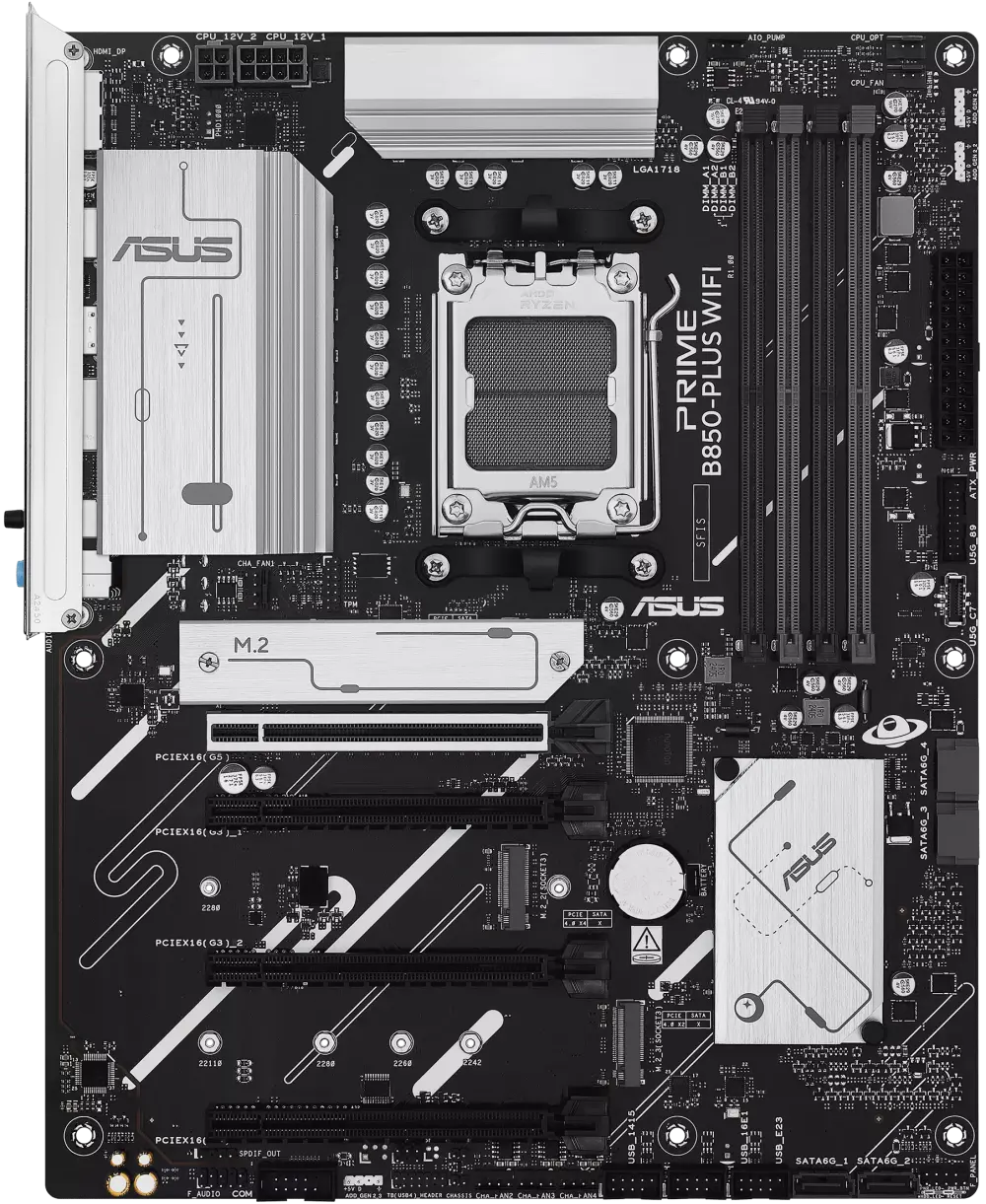

Model	ASUS PRIME B850-PLUS WIFI
Product Number	90MB1L80-M0EAY0
CPU	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Chipset	AMD B850 Chipset
Memory	4x DIMM slots, max. 256GB, DDR5
Memory Frequency	Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM
Memory Features	Dual Channel Memory Architecture // Supports AMD EXTended Profiles for Overclocking (EXPO™) // ASUS Enhanced Memory Profile (AEMP)
Graphics	1x DisplayPort: Supports max. 8K@30Hz as specified in DisplayPort 1.4 // 1x HDMI® port: Supports 4K@60Hz as specified in HDMI 2.1
Expansion Slots (CPU)	AMD Ryzen™ 9000 & 7000 Series Desktop Processors: 1x PCIe 5.0 x16 slot (supports x16 mode) // AMD Ryzen™ 8000 Series Desktop Processors: 1x PCIe 4.0 x16 slot (supports x8/x4 mode)
Expansion Slots (Chipset)	AMD B850 Chipset: 1x PCIe 4.0 x16 slot (support x4 mode) // 2x PCIe 3.0 x16 slots (support x1 mode)
Storage	Total Supports 3x M.2 slots // 4x SATA 6Gb/s ports
Storage (CPU)	AMD Ryzen™ 9000 & 7000 Series: M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) - M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) // AMD Ryzen™ 8000 Series: M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) - M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode
Storage (Chipset)	M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x2 mode) // 4x SATA 6Gb/s ports
RAID Support	AMD RAIDXpert2 Technology: Ryzen™ 9000 Series Processors: RAID 0/1/5/10 - Ryzen™ 8000 Series Processors: RAID 0/1 - Ryzen™ 7000 Series Processors: RAID 0/1/10
Rear USB	Total 8 ports: 4x USB 10Gbps port(s) (3x Type-A + 1 x USB Type-C®) // 2x USB 5Gbps ports (2x Type-A) // 2x USB 2.0 ports (2x Type-A)
Front USB	Total 9 ports: 1x USB 5Gbps connector (supports USB Type-C®) // 1x USB 5Gbps header supports 2 additional USB 5Gbps ports // 3x USB 2.0 headers support 6 additional USB 2.0 ports - USB Type-C® power delivery output: max. 5V/3A
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC:: Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback
Audio Features	Audio Shielding // Premium audio capacitors // Dedicated audio PCB layers
Ethernet	Realtek® 2.5GbE Ethernet // TUF LANGuard
WIFI & Bluetooth	Wi-Fi 6E: 2x2 Wi-Fi 6E (802.11ax) - Supports 2.4/5/6GHz frequency band // Bluetooth® v5.3
Internal I/O Connectors	Fan and Cooling related: 1x 4-pin CPU Fan header(s) - 1x 4-pin CPU OPT Fan header - 1x 4-pin AIO Pump header - 4x 4-pin Chassis Fan header /-/ Power related: 1x 24-pin Main Power connector - 1x 8-pin +12V Power connector - 1x 4-pin +12V Power connector /-/ Storage related: 3x M.2 slots (Key M) - 4x SATA 6Gb/s ports /-/ USB: 1x USB 5Gbps connector (supports USB Type-C® ) - 1x USB 5Gbps header supports 2 additional USB 5Gbps ports - 3x USB 2.0 headers support 6 additional USB 2.0 ports /-/ Miscellaneous: 3x Addressable RGB Gen 2 headers - 1 x Clear CMOS header - 1x Chassis Intrusion header - 1x COM Port header - 1x Front Panel Audio header (F_AUDIO) - 1x S/PDIF Out header - 1x SPI TPM header (14-1 pin) - 1x 10-1 pin System Panel header - 1x Thunderbolt™ (USB4®) header
Back Panel I/O Ports	1x USB 10Gbps port (1 x USB Type-C®) // 3x USB 10Gbps ports (3x Type-A) // 2x USB 5Gbps ports (2x Type-A) // 2x USB 2.0 ports (2x Type-A) // 1x DisplayPort // 1x HDMI™ port // 1x Wi-Fi module // 1x Realtek 2.5Gb Ethernet port // 3x Audio jacks // 1x BIOS FlashBack™ button
Accessories	Cables: 2x SATA 6Gb/s cables // Miscellaneous: 1x ASUS WiFi Q-Antenna - 1x M.2 rubber packages - 3x Screw packages for M.2 SSD // Documentation: 1x Quick start guide
BIOS	256Mb Flash ROM, UEFI AMI BIOS
Operating System	Windows® 11 // Windows® 10 64-bit
Manageability	WOL by PME, PXE
Form Factor	ATX Form Factor 30.5x24.4cm

Asus PRIME B850-PLUS WIFI AM5, 17xUSB, DDR5 8000 OC, PCIe5.0, 3xM.2, Bluetooth 5.3, 2.5GbE, Realtek 7.1
