CPU	LGA1851 socket: Support for Intel® Core™ Ultra Processors / L3 cache varies with CPU
Chipset	Intel® Z890 Express Chipset
Memory	Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. / 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory / Dual channel memory architecture / Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) / Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules / Support for Extreme Memory Profile (XMP) memory modules / Support CUDIMM memory module (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support: - 1 x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port), supporting DisplayPort and Thunderbolt™ video outputs // When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output). // When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output). / * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors," for more information.)* Support for DisplayPort 2.1 version and HDCP 2.3 // - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz // * Support for HDMI 1.4 version // - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz // * Support for DisplayPort 2.1 version and HDCP 2.3 // (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time
Audio	Realtek® ALC1220 CODEC / * The back panel line out jack supports DSD audio. // High Definition Audio / 2/4/5.1/7.1-channel // * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) // - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands / - BLUETOOTH 5.4 / - Support for 11be 160MHz wireless standard // Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1) // - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands / - BLUETOOTH 5.4 / - Support for 11be 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Expansion Slots	CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. // Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)
Storage Interface	CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) / - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) /// Chipset: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) // - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB) // - 4 x SATA 6Gb/s connectors // RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices // RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB	CPU: - 1 x Intel® Thunderbolt™ 4 (USB Type-C®) ports on the back panel / Support up to 40Gbps with Thunderbolt devices / Support up to 20Gbps with USB4 devices / *Support up to 10Gbps with USB 3.2 devices /// Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header / - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel / - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) /// Chipset+2 USB 2.0 Hubs: - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector / 2 x 8-pin ATX 12V power connectors / 1 x CPU fan header / 1 x CPU fan/water cooling pump header / 3 x system fan headers / 1 x system fan/water cooling pump header / 3 x addressable RGB Gen2 LED strip headers / 1 x RGB LED strip header / 4 x M.2 Socket 3 connectors / 4 x SATA 6Gb/s connectors / 1 x front panel header / 1 x front panel audio header / 1 x USB Type-C® header, with USB 3.2 Gen 2 support / 1 x USB 3.2 Gen 1 header / 2 x USB 2.0/1.1 headers / 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) / 1 x HDMI port (Note) / 1 x power button / 1 x reset button / 1 x Q-Flash Plus button / 1 x reset jumper / 1 x Clear CMOS jumper
Back Panel Connectors	1 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports) / 2 x USB 3.2 Gen 2 Type-A ports (red) / 3 x USB 3.2 Gen 1 ports / 4 x USB 2.0/1.1 ports / 2 x antenna connectors (2T2R) / 1 x DisplayPort (Note) / 1 x RJ-45 port / 1 x optical S/PDIF Out connector / 2 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection / Temperature detection / Fan speed detection / Water cooling flow rate detection / Fan fail warning / Fan speed control
BIOS	1 x 256 Mbit flash / Use of licensed AMI UEFI BIOS / PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) / Support for Q-Flash / Support for Q-Flash Plus / Support for Smart Backup
Bundled Software	Norton® Internet Security (OEM version) / LAN bandwidth management software
Operating System	Support for Windows 11 64-bit
Form Factor	ATX Form Factor; 30.5cm x 24.4cm

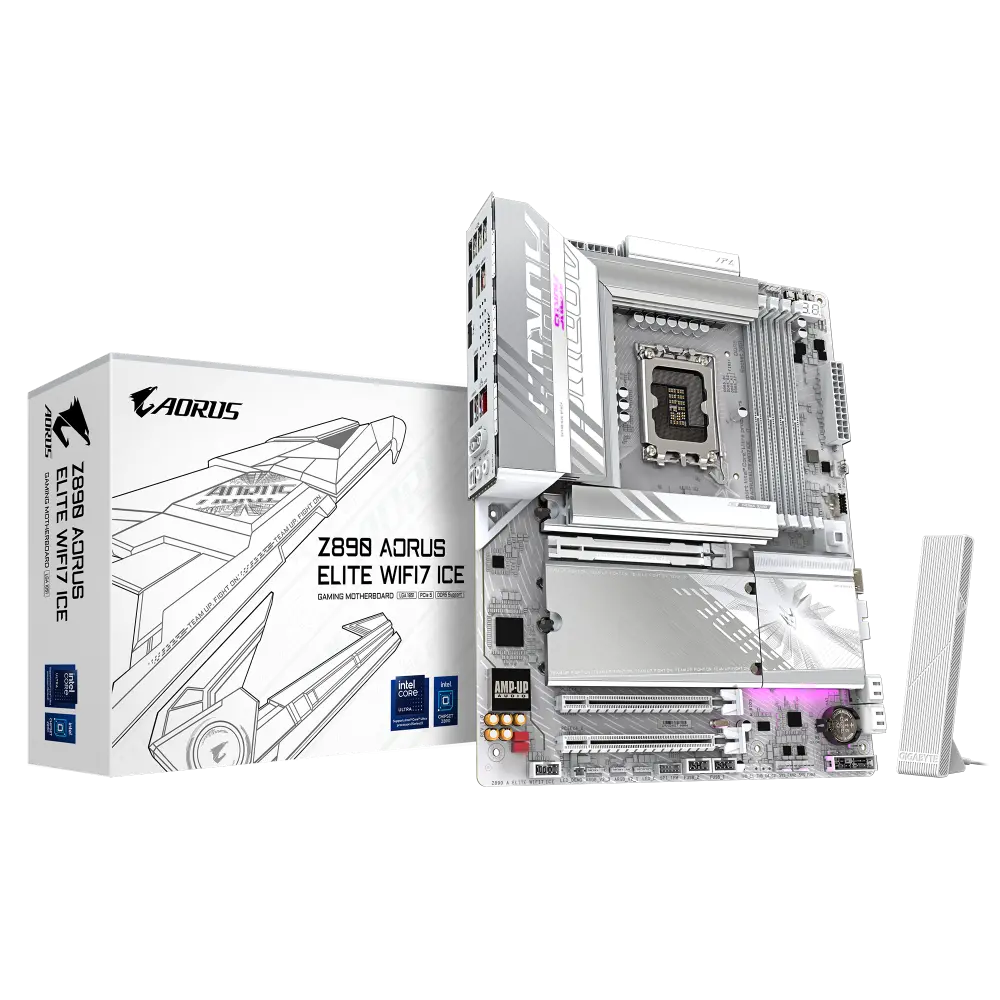

Gigabyte Z890 AORUS ELITE WIFI7 ICE
