*Model*	*AMD Ryzen™ 5 7600*
*Product Code*	*100-000001015*
*Series*	*Ryzen 7000 Series*
*Processor Architecture*	*Zen 4*
*CPU Socket*	*AM5*
*PCI Express® Version*	*PCIe® 5.0*
*Total Cores*	6
*Total Threads*	12
*Multithreading (SMT)*	*Yes*
*Max. Boost Clock*	*Up to 5.3GHz*
*Base Clock*	*3.8GHz*
*L1 Cache*	*384KB*
*L2 Cache*	*6MB*
*L3 Cache*	*32MB*
*Graphics Model*	*AMD Radeon™ Graphics*
*Graphics Core Count*	2
*Graphics Frequency*	*2200MHz*
*USB Type-C® DisplayPort™ Alternate Mode*	*Yes*
*Max of Memory Channels*	2
*System Memory Subtype*	*UDIMM*
*System Memory Type*	*DDR5*
*Max. Memory*	*128GB*
*Max Memory Speed*	*2x1R: DDR5-5200 // 2x2R: DDR5-5200 // 4x1R: DDR5-3600 // 4x2R: DDR5-3600*
*ECC Support*	*Yes(Requires mobo support)*
*Supporting Chipsets*	*A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850*
*Default TDP*	*65W*
*PPT*	*88W*
*Max Operating Temperature*	*95°C*
*Thermal Solution (PIB)*	No
*Unlocked for Overclocking*	*Yes*
*AMD EXPO™ Memory Overclocking Technology*	*Yes*
*Precision Boost Overdrive*	*Yes*
*Curve Optimizer Voltage Offsets*	*Yes*
*AMD Ryzen™ Master Support*	*Yes*
*CPU Boost Technology*	*Precision Boost 2*
*Processor Technology for CPU Cores*	*TSMC 5nm FinFET*
*Processor Technology for I/O Die*	*TSMC 6nm FinFET*
*Instruction Set*	*x86-64*
*Supported Technologies*	*AMD EXPO™ Technology , AMD Ryzen™ Technologies*
*Native USB 3.2 Gen 2 (10Gbps)*	4
*Native USB 3.2 Gen 1 (5Gbps)*	0
*Native USB 2.0 (480Mbps)*	1
*Native SATA Ports*	0
*Native PCIe® Lanes (Total/Usable)*	*28 , 24*
*Additional Usable PCIe Lanes from Motherboard*	*X670E: 12x Gen4 // X670: 12x Gen4 // B650E: 8x Gen4 // B650: 8xGen4*
*NVMe Support*	*Boot , RAID0 , RAID1 , RAID10*
*OS Support*	*Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit*

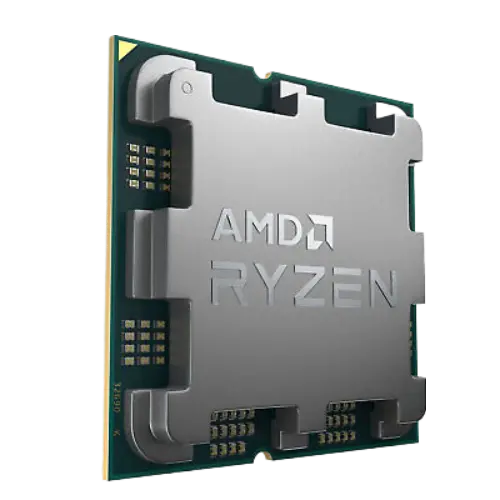

AMD Ryzen 5 7600 6 Cores & 12 Threads – 5.1GHz, Radeon iGPU, 38MB Cache, 5200 DDR5, PCIe 5.0, AM5, Tray

Product Description
