*Brand*	*AMD*
*Model*	*AMD Ryzen™ 5 3400G with Radeon™ RX Vega 11 Graphics*
*Product Code*	*YD3400C5FHSBX*
*Series*	*Ryzen 3000 Series*
*Processor Architecture*	*Zen+*
*CPU Socket*	*AM4*
*PCI Express® Version*	*PCIe® 3.0*
*Total Cores*	4
*Total Threads*	8
*Multithreading (SMT)*	*Yes*
*Max. Boost Clock*	*Up to 4.2GHz*
*Base Clock*	*3.7GHz*
*L1 Cache*	*384KB*
*L2 Cache*	*2MB*
*L3 Cache*	*4MB*
*Graphics Model*	*Radeon™ RX Vega 11 Graphics*
*Graphics Core Count*	11
*Total Graphics Shaders*	*704*
*Graphics Frequency*	*1400MHz*
*WDDM Version*	*2.7*
*GPU Max. Memory*	*2GB*
*DirectX® Version*	12
*OpenGL®*	*4.6*
*OpenCL™*	*2.2*
*DisplayPort™ Version / HDMI® Version*	*Display port: 1.4a // HDMI: 2.0*
*DisplayPort Extensions*	*Adaptive-Sync , HBR3 , HDR Metadata*
*DisplayPort Max Refresh Rates (SDR) / (HDR)*	*3840x2160 @ 60Hz , 3440x1440 @ 144Hz , 2560x1440 @ 180Hz , 1920x1080 @ 240Hz*
*HDCP Version Supported*	*2.2*
*USB Type-C® DisplayPort™ Alternate Mode*	*Yes*
*Multi-Monitor Support*	*Yes, Max Displays: 3*
*AMD FreeSync™*	*Yes*
*Wireless Display*	*Miracast*
*Max Video Encode Bandwidth (SDR)*	*1080p205 8bpc H.264, 1440p115 8bpc H.264, 2160p51 8bpc H.264, 1080p205 8bpc H.265, 1440p115 8bpc H.265, 2160p51 8bpc H.265*
*Max Video Decode Bandwidth*	*1080p60 MPEG2, 1080p60 VC1, 1080p240 8bpc VP9, 1080p240 10bpc VP9, 1080p240 H.264, 1080p240 8bpc H.265, 1080p240 10bpc H.265, 1080p240 JPEG 8bpc*
*Max of Memory Channels*	2
*System Memory Subtype*	*UDIMM*
*Max Memory Size*	*64GB*
*System Memory Type*	*DDR4*
*Max Memory Speed*	*2x1R:DDR4-2933 // 2x2R: DDR4-2667 // 4x1R: DDR4-2133 // 4x2R: DDR4-1866*
*ECC Support*	*Yes (Requires mobo support)*
*Supporting Chipsets*	*X570 , X470 , X370 , B450 , B350 , A320*
*CPU Boost Technology*	*Precision Boost 2*
*Default TDP*	*65W*
*AMD Configurable TDP (cTDP)*	*45-65W*
*Max Operating Temperature*	*95°C*
*Thermal Solution (PIB)*	*AMD Wraith Spire*
*Unlocked for Overclocking*	*Yes*
*Processor Technology for CPU Cores*	*12nm FinFET*
*Package Die Count*	1
*Native USB 3.2 Gen 2 (10Gbps)*	0
*Native USB 3.2 Gen 1 (5Gbps)*	4
*Native USB 2.0 (480Mbps)*	0
*Native PCIe® Lanes (Total/Usable)*	*20, 16*
*Additional Usable PCIe Lanes from Motherboard*	*X470 2x Gen 3, 8x Gen 2*
*Supported Extensions*	*AES , AMD-V , AVX , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64*
*NVMe Support*	*Boot , RAID0 , RAID1 , RAID10*
*AMD Enhanced Virus Protection (NX bit)*	*Yes*
*OS Support*	*Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit*

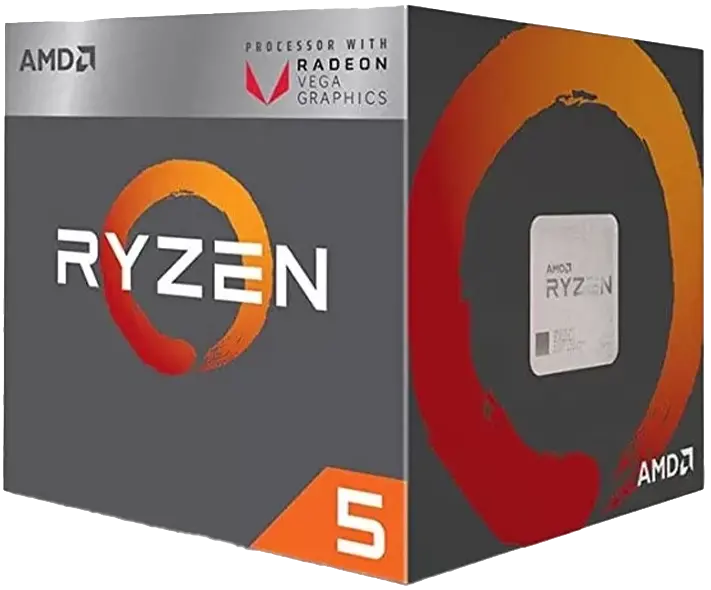

AMD Ryzen 5 3400G – Vega 11 Graphics, 4 Cores, 8 Threads, 4.2GHz Boost, DDR4, PCIe 3.0, AM4

Product Description
